Stretch Wrapping Machine

A Pallet Wrapping Machine is a device used to wrap the content of a pallet in foil, to prepare and secure it for transport. This is an example of goods on a pallet wrapped with foil for protection.

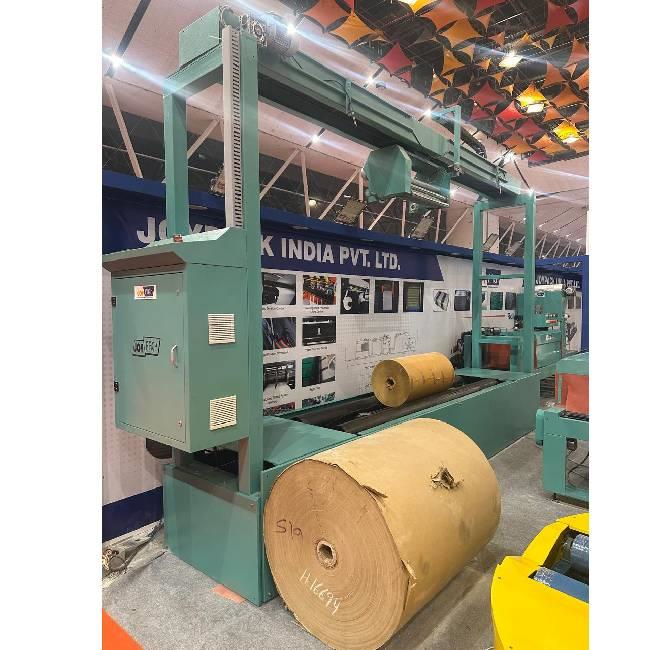

Paper Reel Packing Machine is a machine specially designed for packing paper, film, foil and similar materials manufactured in reels. This machine is made to apply layers of film across the face diametrically and wrap them along the longitudinal axis.

A horizontal wrapper, also called a horizontal ring wrapper, is the ideal solution for horizontally packaging long goods such as profiles, shelves or doors. With a horizontal wrapper, the load is passed horizontally through the machine, the foil revolving around the product

The automatic pallet wrapping machine is a machine designed for the automatic packing of palletized loads. The purpose of these machines is to protect and stabilize the goods on the pallets that will be shipped or storaged

A reel-wrapping machine is a type of packaging equipment that is used to wrap and protect large rolls or reels of materials, such as paper, film, or fabric. The machine typically uses stretch film, shrink film or paper to wrap the reel.

A stretch wrap machine is a piece of equipment that automatically wraps pallets with stretch wrap. This keeps the products housed inside of the pallet contained and safe from damag

Sleeve wrapping machine is suitable for wrapping and then shrinking cylindrical products like bottles, cans, big carton,bags etc with or without bottom tray. The Whole process of sealing is mainly conducted in two steps. * Wrapping the product from top and bottom with the film

Sleeve wrapping machine is suitable for wrapping and then shrinking cylindrical products like bottles, cans, big carton,bags etc with or without bottom tray. The Whole process of sealing is mainly conducted in two steps. * Wrapping the product from top and bottom with the film

Sleeve wrapping machine is suitable for wrapping and then shrinking cylindrical products like bottles, cans, big carton,bags etc with or without bottom tray. The Whole process of sealing is mainly conducted in two steps. * Wrapping the product from top and bottom with the film

It is a type of Shrink Bundling designed for various types/shapes of bottles/jars, it holds multiple products tightly together, reduce damages during transit, provide added protection and increase in Sales along with reduced cost of packaging and logistics.

A stretch wrap machine is a piece of equipment that automatically wraps pallets with stretch wrap. This keeps the products housed inside of the pallet contained and safe from damage

Specifications of Carton Wrapping Machine :

 Provides an inexpensive method of protecting carton boxes and similar products from moisture and damage during transportation.

 Wraps using stretch cling film.

Very high throughput – up to 120 packs per hour.

 Easy manipulation of load to provide bi-directional wrapping.

 Digital display of Stretch percentage, film consumption

 Suitable for Apparels, Garments, computer components, handicrafts and food products packed in Carton boxes.

 Optional - Pneumatic cylinder with top platen models

We are offering Box Wrapping Machine to our clients.

Features:

Adopting Programmable logic control reliable in performance, convenient in operation.

It can protect the package against dust and damp or damage.

Photocell detector automatically senses luggage height. The machine can wrap a big luggage as 850 mm in height.

With pre-stretch carriage, pre-stretch rate up to 300%, film savings

Holder speed adjustable.

Film tension adjustable.

Easy tracking for wrap counter device.

Specifications:

Model: JP-01

Wrapping Size (L × W × H) (mm): (400-1200) × (180-400) × (300-600)

Turntable Speed (rpm/min): 20

Turntable Loading (max)(kg): 100

Electrical Requirement: Single Phase 220 V/50 Hz

Power (kW): 1.0

Film Carriage: Pre-Stretch Type

Machine Weight (kg): 200 Kg

Machine Dimension (mm): 1595×600×1194

We offer Stretch Wrapping Machine to our clients. This machine has good adaptability, decreased manpower and low electricity consumption. The machine can load maximum package of 2 tons. It can operate with single or three phase power supply.

Specifications:

Control: Omron PLC 0-3 top (bottom) & up-down warp time choose cycle pause capability

Film Carriage Drive: Film carriage can up-down to suit difference height product heavy duty chain lift, calm and safety

Film Carriage: Power pre-stretch Up to 300% film delivery Variable speed by AC drive motor film dancer-bar with variable speed Output

Height Sensing: Adjustable limit block to active top limiting Switch

Rotating Platform Speed: 3-20 RPM adjustable by frequency Inverter (AC Drive)

Top Plate: Pneumatic top plate

Max. Load Size: 300-600 mm(L) x 300-600 mm (W) x 300-600 mm (h) Special packing height available

Max. Weight Capacity: 100 Kg

Power Supply: I Phase 220 V/50 Hz /1.0 KW

Machine Weight: 220 kg

Machine Dimension: 1740 mm x 600 mm x 1800 mm

We are offering high performing Horizontal Stretch Wrapping Machine.

Features:

Horizontal Stretch Wrapping Machine / Spiral Wrapping Machines for Aluminium Profiles, Pipes, Wooden Lengths, Carpets etc

Soft start through AC inverter

Fixed point turntable stopping

Fixed upward-downward spool carriage speed with 20 % overlap

Automatic load height sensing by limit switch on sliding guide

Individual top & bottom wrap counters

Dual purpose for reels or palletized load

PLC Controlled Models

Heavy duty turntable

Specifications:

Model: MH200

Max wrapping Size: W200 mm x H200 mm

Min length: 1 meters

Conveying speed: 5 meters

Ring rotating speed: 190 rpm

Voltage: 220 VAC/50 Hz/10A/1.3 kW

Machine dimensions: L180 mm x W720 mm x H800 mm

Machine weight: 200 Kg

We are offering Luggage Wrapping Machine to our clients.

Specifications:

Model: JP-705

Turntable motor: 0.75 kW

Film-rack lift motor: 0.18 kW

Power supply: 220/380 V/50 Hz

Dimension(L×W×H): 1510×2500×2600 mm (Model XT4503 press-rack height is not accounted in)

Max packing height: 2100 mm (can make it as per required size)

Max packing weight: 2000 Kg (can make it as per required size)

Diameter of turntable: 1500 mm (can make it as per required size)

Net weight: 530 Kg (Weight of press-rack is not accounted in)

We are providing the best quality of Power Jack Pallet Wrapping Machine, which is according to the market standards.

Control system:

PLC control

Photo-eye auto-height sensing with on /off switch inside tower

Separate top ,bottom & up-down Wrap Counter Selector

Over-wrapping time is set to create an over-wrap (secure top part of the load wrap better)

Turntable system:

1650 mm Diameter Structural steel plate

78 mm Height floor to top of turntable
