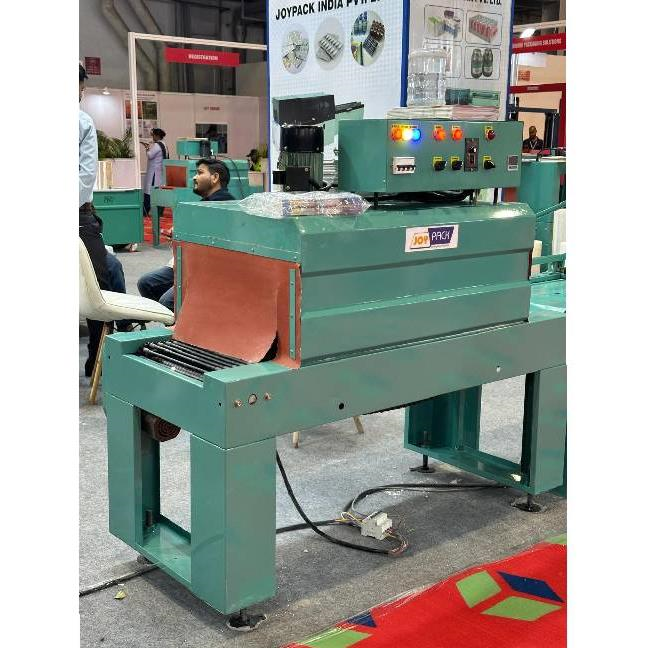

Shrink Tunnel Sealer Machine

A shrink tunnel is a heated tunnel with a conveyor system running through the tunnel. The heat settings and conveyor speed of the shrink tunnel can be adjusted to heat a shrink film properly. The heat applied to the shrink film enables the film to conform to the product within the film tightly.

A shrink tunnel is a heated tunnel with a conveyor system running through the tunnel. The heat settings and conveyor speed of the shrink tunnel can be adjusted to heat a shrink film properly. The heat applied to the shrink film enables the film to conform to the product within the film tightly.

The VIPL Shrink Tunnel is designed to be versatile and efficient to suit varying products and performance criteria. It features: Frequency Controlled Variable Speed Conveyor Drive, Digital Temperature Controller for precise and consistent shrink characteristics and many more.

A shrink tunnel or heat tunnel is a heated tunnel mounted over or around a conveyor system. Items (such as packaging) have shrink film loosely applied; with heat, the film shrinks to fit snugly around the wrapped object.

The shrink tunnel typically consists of a conveyor belt that moves the product through a heated tunnel, where heat is applied to shrink the wrapping material around the product.

Shrink tunnels are temperature controlled environments used to tighten shrink film that has been applied by a shrink wrapper around products. Conveyor systems move packages through the oven, allowing for an even application of heat. Conveyors are made from either large rollers or Teflon mesh belts for added stability.

Mini Shrink Tunnel machine is used for vacuum packaging. It is perfect for numerous industries viz. food and beverage, chemical, pharmaceutical, garment and other FMCG factories. The machine is available with dimension size of 2700 x 900 x 1800 mm.

Shrink tunnels are temperature controlled environments used to tighten shrink film that has been applied by a shrink wrapper around products. Conveyor systems move packages through the oven, allowing for an even application of heat. Conveyors are made from either large rollers or Teflon mesh belts for added stability.

A shrink bundling machine is a type of packaging equipment that is used to bundle multiple items together and shrink-wrap them in plastic film. This process involves placing the items to be packaged into a bundle, applying heat to shrink the plastic film tightly around the bundle, and cutting the excess film

A shrink tunnel utilizes a conveyor and heat to maintain consistent temperatures within the tunnel chamber. Shrink tunnels are most often used for heat shrink packaging items, but can also be used for curing applications as well. The three primary types of shrink tunnels are recirculating, infrared, and steam tunnels

Shrink tunnels are temperature controlled environments used to tighten shrink film that has been applied by a shrink wrapper around products. Conveyor systems move packages through the oven, allowing for an even application of heat. Conveyors are made from either large rollers or Teflon mesh belts for added stability.

The range of Automatic Side Sealer offered by us is in high demand and finds application in various industrial sectors. We fabricate these products using the high-grade quality raw material, sourced from the authorized vendors of the industry. These are manufactured in accordance with the set industry standard and are also customized as per the clients’ specified detail and requirement.

Features:

HMI control allows for easy change of machine speed and reciprocation

Speed & sealing blade height and side sealing wheel can be adjusted at any time to suit package height

Safety Device For Cutting Blade: A micro-sensor combined with Automatic blade return provide safety

Protection in cut a hand object. This effectively protects the machine while minimizing product loss

Employs constant temperature one-piece fabricated bronze sealing blade. Draw-out type constant temperature

Heater combined with SSR constant temperature control features maximum stability of temperature

Power saving

Easy replacement

Equipped with Japan Mitsubishi or OMRON high-performance PLC control for flexible controls for bag sizes

Temperature, pressure and dwell time (Sealing blade close time). This assures superior sealing tightness without Scorching (carbonized) break

Adjustable Micro-venting Perforating Device

Equipped with over 4 sets, Each set has 4 pins, which are located at venting positions of film to achieve the best possible heating shrinking effect

Electrostatic Eliminator

Designed with anti-electrostatic belt, separate electrostatic removing for film and air flow sliding device to fully prevent Film from adhering without loss

The HMI controller allows for saving 50 sets of package sizes, that minimizes the setting time for size variation

The sealing modes including seal type and reciprocating type

Our highly experienced personnel are engaged in manufacturing and supplying a wide range of Steam Shrink Tunnel. Our sturdy shrink tunnel machine can wrap the products of different shapes & sizes.

Specifications:

Opening: Max. Width 650 mm, Max. Height 350 mm

Package Size: Max. Width 550 mm, Max. Height 300 mm

Power Consumption: 15 kW

Packing Dimensions: Length 2150 mm, Width 900 mm, Height 1700 mm

Additional Information:

Item Code: ST60

Specifications of Shrink Tunnel Machine :

Conveyor speed is driven by a variable speed motor for easy adjustment.

Use of stainless steel heating tube

Thermostat used to ensure temperature consistency.

Equipped with live roller. Stainless steel and teflon mesh is available if necessary.

An economical packing solution

We are engaged in manufacturing a gamut of Meat Industry Shrink Tunnel, which is fabricated using the finest quality raw material, procured from the authorized vendors of the industry. Our range can also be customized in accordance with the client''s requirement.

Features:

Machine constructions use S-41 steel material

Live roller rod conveyor

Speed changeable motor with speed desired & adjusted easily

Fully re-circulating heating air

Temperature variable with easy operation

SUS thermocouple systems

SUS 304 stainless material wires & terminals, covered with ceramic guards

CE model available

Additional Information:

Item Code: JP-37J

We are offering our patrons an extensive range of Mini Type Shrink Tunnel, which finds application in various industrial sectors such as Stationery, Sweets, Gift Packets, Confectionery, Welding Rods, Bottles, Cosmetics. Our range if acknowledged for its compact size, dimensional accuracy, and high durability. The range offered by us can be availed at cost effective prices.

Features:

Compact in size

Rugged Heavy Duty Machine

Offers Neat, Clean & Wrinkle-less Wrapping

Cost effective prices

Additional Information:

Item Code: SA-313

We are engaged in offering Bottles Packaging Shrink Tunnel to our clients.

We are leading  & distributors of Automatic Shrink Tunnel.

Specifications:

• Power Supply: 200-230 V, 1 phase, 50/60 Hz

• Air Consumption: 1 cfm

• Sealing Area Dimensions: 430 mm W x 560 mm L (17" x 22")

• Product Pass through Height : 125 mm (5")

• Maximum Film Width: 500 mm (20")

• Max Product Dimensions: 80 mm W x 500 mm L x 100 mm H (15"x 20"x 4")

• Minimum Product Length: 100 mm (4") Standard

• Jaw Sealing Position: Fixed

• Machine Dimensions: 840 mm W x 1600 mm L x 1650 mm H (33"x 63"x 65")

• Net Weight: 290 kg (640 lbs)

• Working Height: 850 - 900 mm (34"- 36")

Capacity 0-10 m/min

We are the manufacturer of a wide range of Semi Automatic Shrink Tunnel.

Specifications:

Product size used: 08-24 L X 08-24 W X 16 H inch

Voltage: 430 V 50 Hz

Power: 04-12 kW

Feeding weight: 5-7 Kg

Workroom size: 30’’ L X 08-24’’ W x 16’’ H

Weight: 200 kg, Gross Wt up to-250 Kg

Shrinkable film use: PVC/PP

We are the manufacturer of a wide range of Shrink Tunnel.

Specifications:

Model No: JP-37J POF

Machine constructions use S-41 steel material

Specified spare parts kit

Speed changeable motor with speed desired & adjusted easily

Fully re-circulating heating air

Temperature controlled automatically

SUS thermocouple systems

SUS 304 stainless steel inner tunnel

Additional Information:

Item Code: High-Speed

We are the manufacturer of a wide range of PE Shrink Tunnel

We offer standard Industry Shrink Tunnel which is used to wrap the products of different shape and sizes in an appropriate manner.

Features:

Rigid construction

Highly efficient

Longer Service Life

Superior Performance

Easy operation

Compact size

Metal enclosure

Additional Information:

Item Code: JP-316-PVC-POF

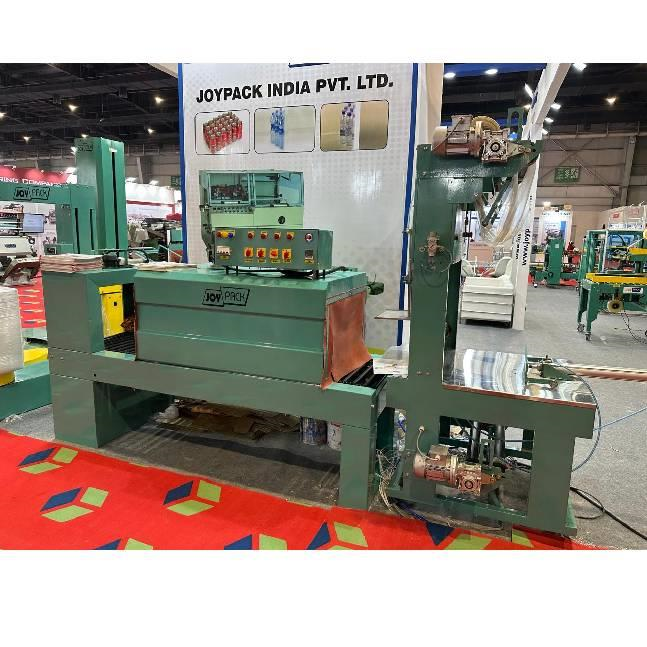

We are the manufacturer of heavy duty Semi Automatic Web Sealer Machine of best quality according to the market standard. Characteristics: • With full automatic functions of bottle transfer and arrange, membrane packing, sealing and cut, shrinkage, cooling and shaping, etc. • Adopt with PLC automatic program circulation control with stable and reliable performance. • 3 layers of heat insulation treatment with the good insulating property, quick temperature rise, and energy saving. • The enhanced cooling shaping passage can quickly turn the packing membrane into high strength status that is conveniently stored and transported. • It is easy to change the packaging combination and bottle type to integrate the multi-function into one machine. Specification: • Dimension for the whole unit: L5500 mm×W3200 mm×H2100 mm • Thermal shrinkage passage dimension: 1800 mm×W650 mm×H450 mm • Max. package dimension: L600 mm×W400 mm×H350 mm • Transfer belt dimension: 800-1200 mm • Packaging speed: 10-12 Pgs/minute • Operating power supply/power: 380 V 19 kW • Sealing and cut time/temperature: 0.5-1.5 s 140oC-160oC • Operating air pressure: 0.6-0.8 Mpa • Air consumption: 0.5 m3/minute

Features of Web Sealer :

The unit packs shall be fed automatically into the Wrapper / Sealer by means of an electrically operated feeding conveyor which can be provided for RH OR LH feeding as per layout requirement.

 The feeding conveyor shall have the necessary controls to ensure that feeding of only one pack at a time is cycled.

Feature of Shrink Tunnel:

A Shrink Tunnel of  our design shall be linked up to the above equipment, to accept the unit pack duly Wrapped and Sealed in appropriate Shrink Film.



It shall be fabricated from heavy duty MS structural frame and streamlined by MS paneling duly Primed and Painted.

Specifications of Semi Automatic L Sealer with Shrink Tunnel:

Manual or pneumatic model are available

Alchrome wire sealing and cutting system provides a strong seal and smokeless operation.

Discharge conveyor removes the package to the shrink tunnel when the seal is complete.

The height of sealing table is adjustable.

Protection device is assembled in sealing frame.

Excellent perforation designed allows pin changed easily.

The Automatic Web Sealer Tunnel is a reliable and efficient packaging solution for businesses looking to streamline their packaging process. This machine seamlessly seals and shrinks film around products, ensuring a professional and secure finish. With its automatic operation, this sealer tunnel saves time and labor costs, making it a valuable addition to any production line.

A shrink tunnel or heat tunnel is a heated tunnel mounted over or around a conveyor system. Items (such as packaging) have shrink film loosely applied; with heat, the film shrinks to fit snugly around the wrapped object.
