L Sealers

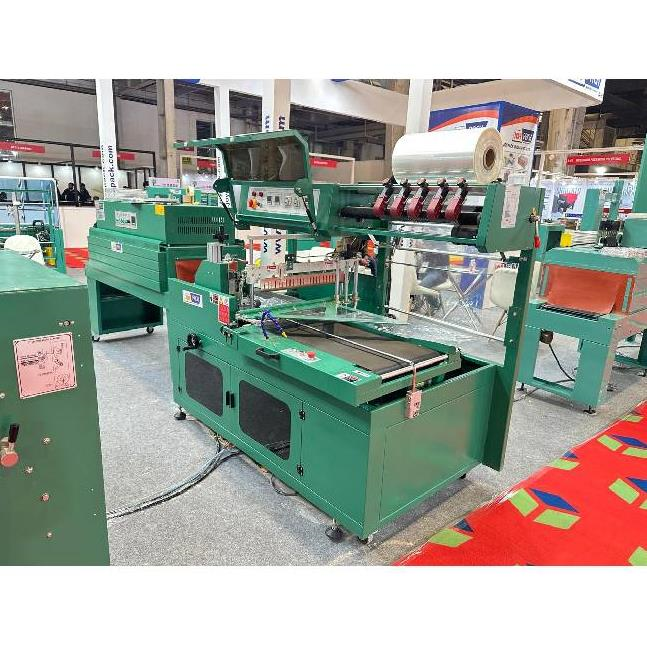

fully automatic L-sealers use center folded polyolefin(POF) film. In this machine a conveyor feeds the product into the film. The machine measures the length of the product using sensor and the sealing jaws operate automatically to perform sealing.

fully automatic L-sealers use center folded polyolefin(POF) film. In this machine a conveyor feeds the product into the film. The machine measures the length of the product using sensor and the sealing jaws operate automatically to perform sealing.

L-bar sealers are designed for shrink film packaging. In one step, you can cut and seal film. Steel constructed film separator/work table and film roller with twin perforating hole punchers & film guide now comes standard with each sealer. L-Bar Sealers are easy to operate.

This L-Bar sealer features a unique, smoothly-radiused seal bar that nearly eliminates the film tears that are caused by conventional L-bar sealers. The seal bar's special PTFE coating facilitates smooth film travel regardless of film type or thicknesses.

fully automatic L-sealers use center folded polyolefin(POF) film. In this machine a conveyor feeds the product into the film. The machine measures the length of the product using sensor and the sealing jaws operate automatically to perform sealing.

fully automatic L-sealers use center folded polyolefin(POF) film. In this machine a conveyor feeds the product into the film. The machine measures the length of the product using sensor and the sealing jaws operate automatically to perform sealing.

An L-sealer is a piece of packaging equipment designed to enclose a product with shrink film. Commonly, an L-sealer consists of an adjustable product tray where the product is placed and the top layer of center folded film covers the product.

Specifications of Automatic Vertical L Sealer Tunnel:

Consistent sealing process.

Pillars drive design provides excellent stability and durability

Seal seam is neat and fix without fold line

Automatic film advance system

Two sets of photoelectric sensor system automatically compensate for package length change

Tool-less change over with scaled adjustments throughout

Different brands of shrink film is acceptable

LB-801 is mainly designed for packing thin and tiny product.

Specification of Vertical L Bar Sealer tunnel:

Consistent sealing process.

Pillars drive design provides excellent stability and durability

Seal seam is neat and fix without fold line

Automatic film advance system

Two sets of photoelectric sensor system automatically compensate for package length change

Tool-less change over with scaled adjustments throughout

Different brands of shrink film is acceptable

LB-801 is mainly designed for packing thin and tiny product

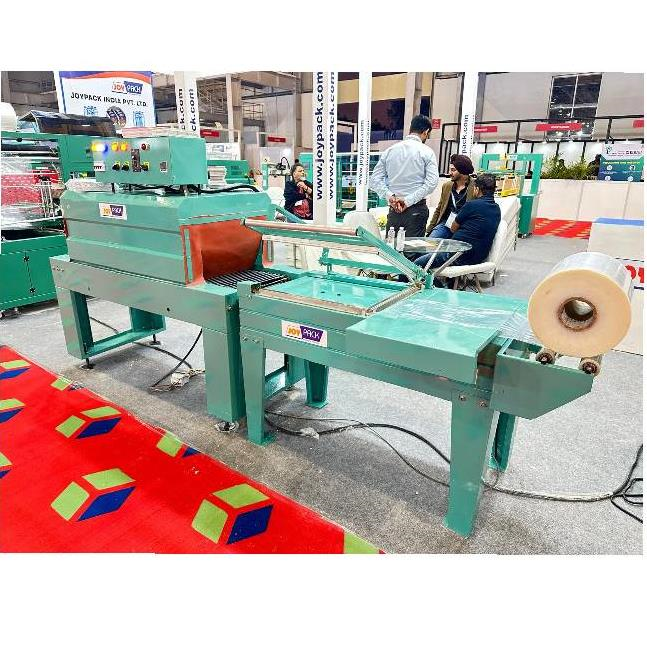

We are the manufacturer of a wide range of Semi Automatic L SealerTunnel

Additional Information:

Item Code: TY37JPOF

We are the manufacturer of a wide range of Semi Automatic L SealerTunnel

Additional Information:

Item Code: TY37JPOF

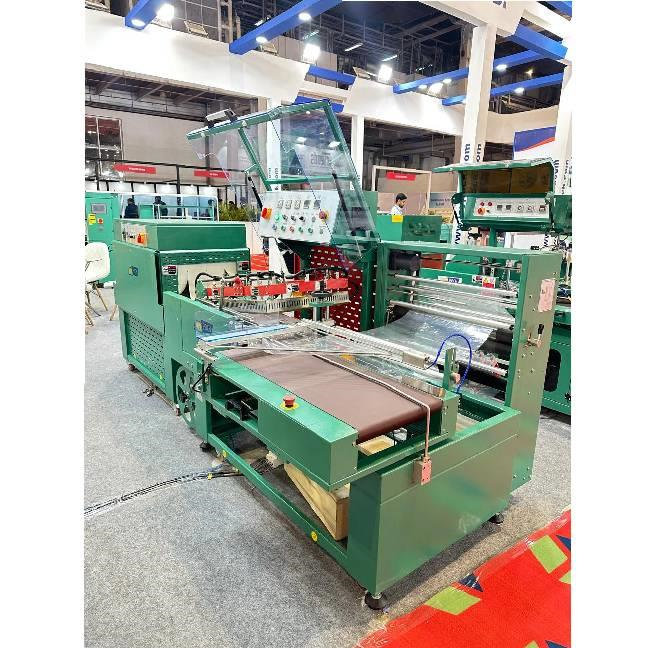

We are the leading and prominent Manufacturer and Supplier of Automatic L Sealer Machine

Warranty 1 Year

We offer all kinds of Semi Automatic L Sealing Machine to our clients.

Features:

Equipped with safety protection & alarm, heavy duty sealing knives, no build-up & smoke whilst sealings

Easy operation & adjustment

High efficiency for labor cost saving

Extra pinch roller guide for better film control and saving PLC control system with 2 programs, length controlled by either photo eyes or times.

Use:

Widely adopted by the food, electronics, stationery toys, fruits salted materials, metal wares, tools, cosmetic, pharmaceuticals, clothing, daily-use products, electronic appliances, bamboo ware, etc, Industries for shrink packing purposes.

We are the preparer of a wide range of Automatic L Type Sealer Machine.

Features:

• Equipped with safety protection & alarm, heavy duty sealing knives, no build-up & smoke whilst sealing

• Easy operation & adjustment

• High efficiency for labor cost saving

• Extra pinch roller guide for better film control and saving

• PLC control system with 2 programs, length controlled by either photo eyes or times

Uses:

• Widely adopted by the food, electronics, stationery toys, fruits salted materials, metal wares, tools, cosmetic, pharmaceuticals, clothing, daily-use products, Electronic appliances, bamboo ware, etc, Industries for shrink packing purposes

Specifications: Model No. Machine (L*W*H)mm Package Range (L*W*H)mm SpeedRange (PPM) Power Consumption KW JP-700-80 1500x820x1450 (100-300)x(40-250)x(5-80) 1~25 220V 1.5 JP-700-80S 1500x820x1450 (30-300)x(40-250)x(5-80) 1~25 220V 1.5 JP-701-120 2100x1000x1580 (100-500)x(60-350)x(5-120) 1~25 220V 2 JP-701-120S 2100x1000x1580 (30-500)x(60-350)x(5-120) 1~18 220V 2 JP-702-120 2550x1200x1580 (120-700)x(120-500)x(5-120) 1~20 220V 2.5

Features of Tayi Yeh Automatic L type Sealing machine :

Model - TY701

Safety protection & alarm

Integrated seal knife with curved joint for smart sealing line recondition

Heavy duty sealing knives, no build-up & smoke whilst sealing

Isolated perforating rod for easy adjustment without tearing line

Easy operation & adjustment

High efficiency to maximize capacity

Extra pinch roller guide for better film control and saving

PLC control system alternative in standard program and timer control

Temperature, Sealing Time, Sealing Height adjustable

Suitable for POF & PE film

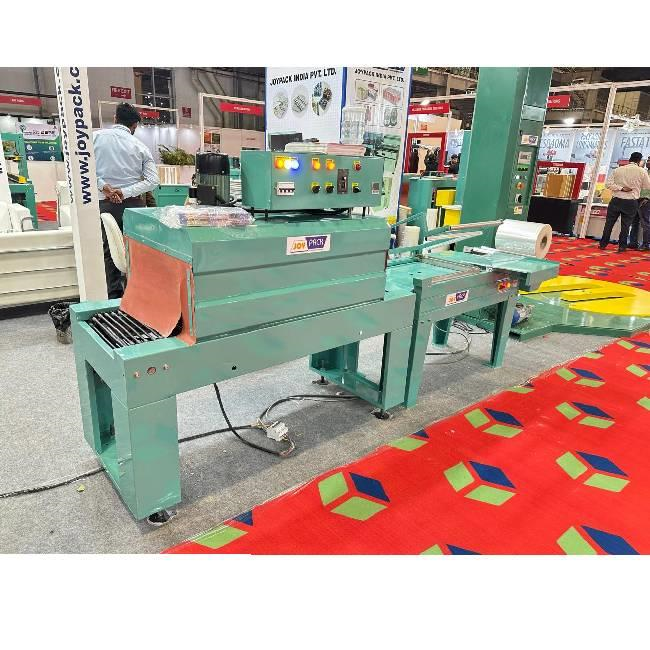

We are offering Automatic L Sealer Tunnel to our clients.

Features:

Equipped with safety protection & alarm, heavy duty sealing knives, no build-up & smoke whilst sealings

Easy operation & adjustment

High efficiency for labor cost saving

Extra pinch roller guide for better film control and saving

PLC control system with 2 programs, length controlled by either photo eyes or times

We manufacture L Sealer Machine, which provides an all-round seal.

In this machine, a conveyor feeds the product into the film. The machine measures the length of the product using sensor and the sealing jaws operate automatically to perform sealing. An operator is only required for loading packets, monitoring and film changing.
